Runhorse EV,J2-P(EEC,L7E) Four Wheels Electric Van Pickup
Positioning： Used for the delivery solution for the last mile of the city.Cold chain, takeaway, express delivery, logistics
and supermarket distribution, etc. It is a short-distance cargo transportation vehicle within the city.
Basic Parameters
| Configuration | Item | J2-P |
| Parameter | L*W*H(mm) | 3600*1345*1765 |
| Speed (km/h) | 52km/h | |
| Max. Range (km) | 90/170 | |
| Capacity (Person) | 1 | |
| Curb Weight (kg) | 510 | |
|
550 | |
| Cargo Box Size (mm) | 1635*1050*1058 | |
| Steering Mode | Middle Steering Wheel | |
| Power system | AC Motor | 4000W/5000W |
| Battery | 105Ah/206Ah Lead Acid Battery | |
| Charging Time | 3-6 hours with Fast Charger | |
| Charger | Intelligent Charger | |
| Brake System | Type | Hydraulic System |
| Front | Disc | |
| Rear | Drum/Disc | |
| Suspension System | Front | Independent Double Wishbone |
| Rear | Integrated Rear Axle | |
| Wheel Suspension | Tyre | Front 135/70-R12 Rear 145/70-12 |
| Wheel Hub | Aluminum Alloy Hub |
1, Logistics Box-- Cellular panel(side open or wing open):
With comprehensive strength,bending resistance, excellent properties such as corrosion resistance and high temperature resistance. 70-90% lighter than solid palate.
V01 one side door V02 Double sides door
2,Optional Cargo Box-Equip with cooling system and heating system.
Cooling system design for fruit,vegetable, seafood, drinks, medicine transportation, from -18 ℃ to -5

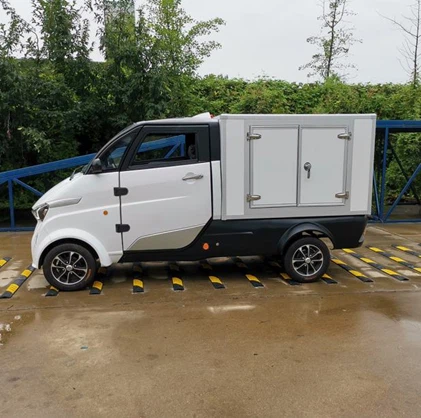

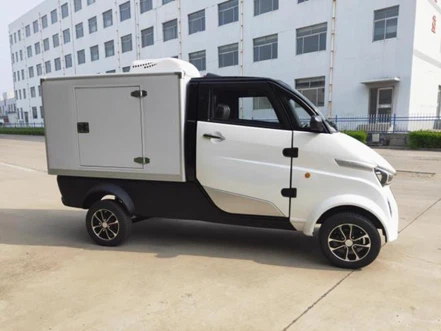

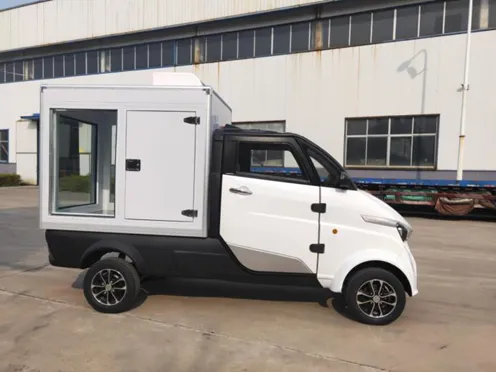

V03 Refrigerated logistics box
Heating system design for takeaway, temperature from 40℃ to 60 ℃. The cargo box can be divided into two spaces, one for cooling and one for heating.
Semi-refrigerated and semi-heated logistics box
3, Aluminium alloy hopper
After heat treatment and alloying strengthening.
Advantage:
1. Save Cost
CKD (Completely Knocked Down) assembly reduce and save customs duty & transportation cost
2. Save time
Fast charger within 3~6 hours under home charger (Charging time depends on battery capacity)
3. Car sharing system
Customers can download the APP, and scan the QR code on the vehicle, Users can pay the cost directly online.The company can manage all vehicles through the phones.
