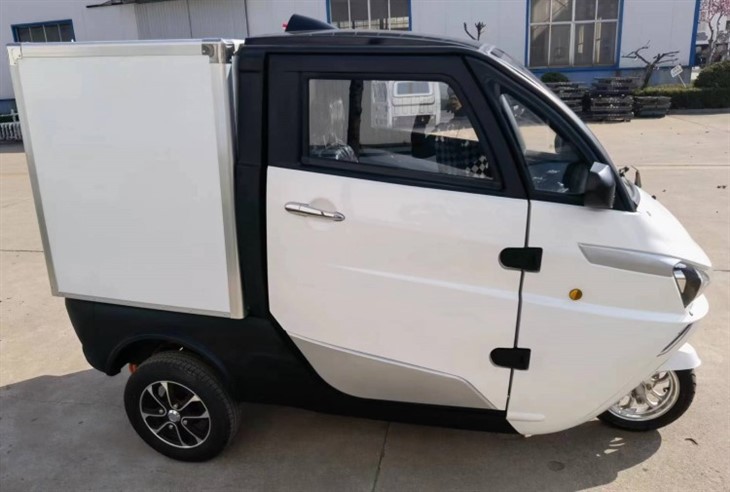

Runhorse Electric Delivery Tricycle J1-C，EEC approved（L2e）
Configuration and Basic Parameters
| Configuration | Item | J1-C | |||
| Parameter | L*W*H （mm) | 2715*1180*1810 | |||
| Max.Speed(km/h) | 45 | ||||
| Max.Range(km) | 115/200 | ||||
| Capacity(person) | 1 | ||||
| Cub Weight(kg) | 460 | ||||
| Cargo Box Size(mm) | 880*1180*995 | ||||
| Cargo Hopper Size(mm) | 880*1180*400 | ||||
| Loading capacity(kg) | 300 | ||||
| Steering Mode | Handlebar | ||||
| Power System | A/C Motor | 3000W/4000W | |||
|
Lithium Battery |
105Ah/206Ah LiFePo4 Battery | ||||
| Charging Time | 3/6 hours with fast charger | ||||
| Charger | Intellengent Charger | ||||
| Brake System | Type | Hydraulic System | |||
| Front | Disc | ||||
| Rear | Disc | ||||
| Suspension System | Front | Independent Double Wishbone | |||
| Wheel Suspension | Tyre | Front 120/70-R12 Rear 145/70-R12 |
|||
| Wheel Hub | Aluminum Alloy Hub | ||||
|
Function Device |
Mutil-media | MP5+Reverse Camera | |||
| Electric Heater | 60V 800W | ||||
| Central Lock | Auto Level | ||||
| One Button Start | Auto Level | ||||
| Electric Door&Window | 2 | ||||
| Seats | Leather | ||||
Details of the vehicle
1. ABS Resin Plastic Cover and painting
Whole cover with ABS Resin plastic , have excellent comprehensive physical, impact resistance ,Stability, two-thirds
lighter weight than iron. Automobile-grade,Robot-painting .

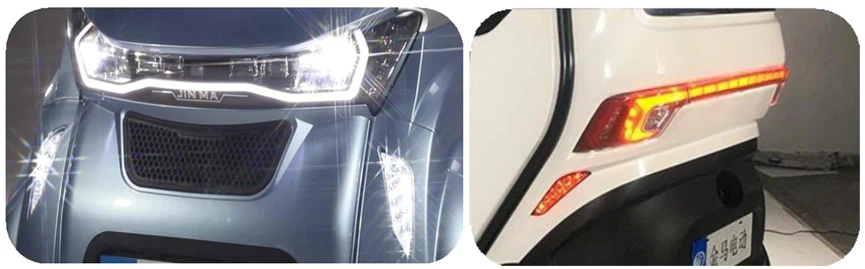

2. LED Light System
The integrate LED headlight &rear-light
Turn lights, brake lights, reverse lights. Low power consumption and increase 50% more in light transmittance.
3,Front Windshield
3C certified tempered and laminated glass Improve visual effect and safety performance.
4，Dashboard
LED display, volt meter, power meter, kilometer and reverse camera,plus Bluetooth, MP5,USB connector.
5,Central lock and One button start
Central lock , Press the start button and step the brake pedal at the same time, easy to start the vehicle.
6, Seat with belt
Genuine Leather with PU,optional rotating seat for easy getting on and off.
7.AC Motor
AC motor with powerful and water proof, lower noise, no carbon brush, maintenance-free.
Equipped with fast home charging system.
8.Lithium Iron Phosphate Battery
with BMS system, more than 2,500 times charging cycles(8-10 years) under working environment from -30 to 50 °C.
Equipped with hill-start assist control.
Can be remote online monitoring. Automatic power off after full charge.

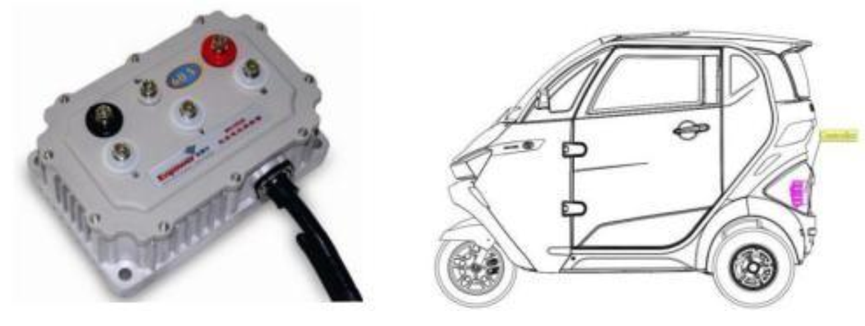

9.Electronic Control System
10. Brake System
Front-disc Rear-disc,two-circuit hydraulic brake.
11.Suspension System
The front axle and suspension are independent suspensions, simple structure and excellent stability. The integrated
rear axle,axle housing welded by seamless steel tube, lower noise,more durable and reliable.
12.Optional Cargo Box-Equip with cooling system and heating system.
Cooling system design for fruit,vegetable, seafood, drinks, medicine transportation, Adjustable refrigeration temperature from -18℃~10℃
Heating system design for takeaway , adjustable heating temperature from 40℃to 60 ℃. Cargo box can be divided to two space, one for cooling and one for heating.
Advantage
1. Save Cost
CKD (Completely Knocked Down) assembly reduce and save customs duty & transportation cost
2. Save time
Fast charger within 4-5 hours under home charger
