Jinma T1000 Gasoline 3-Wheel Utility Vehicle
|Product Detail Page
Tough Enough for Any Load. Reliable Every Day. Create More Value for Your Agricultural & Cargo Business
1. Product Overview

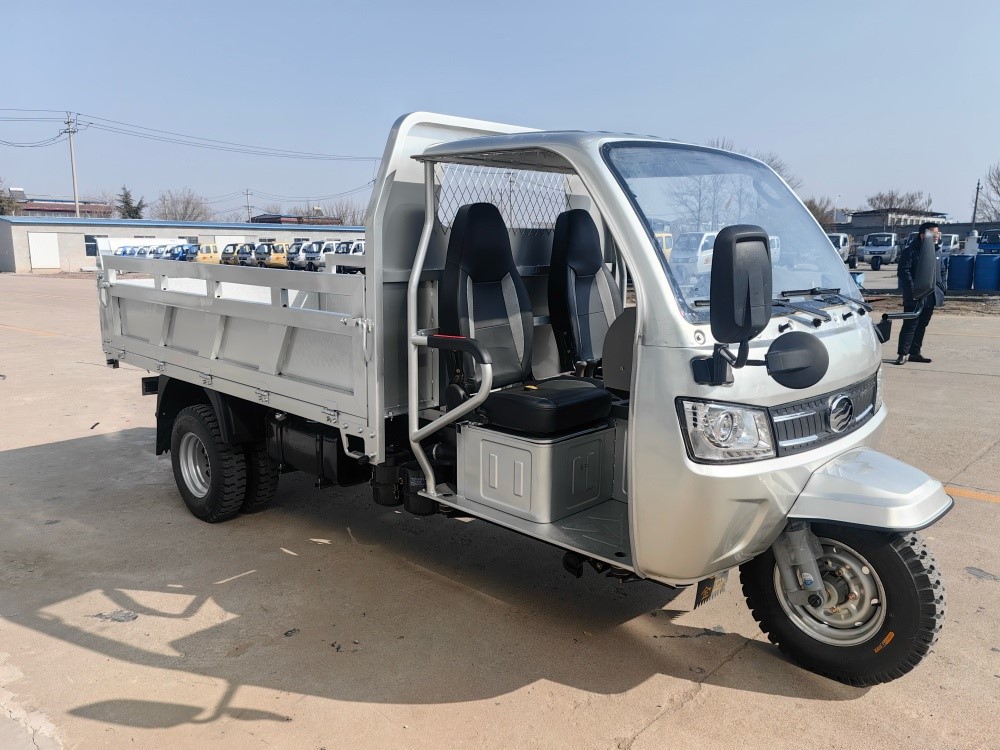

The Jinma T1000 is a heavy-duty, fuel-efficient gasoline 3-wheel utility vehicle (cargo tricycle) designed and manufactured by Shandong Runhorse Electric Vehicles Co., Ltd. Built for the rigorous demands of agricultural transportation, rural logistics, and light commercial cargo delivery, this model combines robust load capacity, reliable engine performance, and user-friendly operation to deliver exceptional value for global emerging markets.
Ideal for smallholder farmers, agricultural cooperatives, and local logistics providers, the T1000 excels on unpaved rural roads, farm tracks, and urban secondary roads, with 3 adaptable configurations to match diverse cargo and terrain needs across Africa, Southeast Asia, South America, and the Middle East.
2. Core Advantages

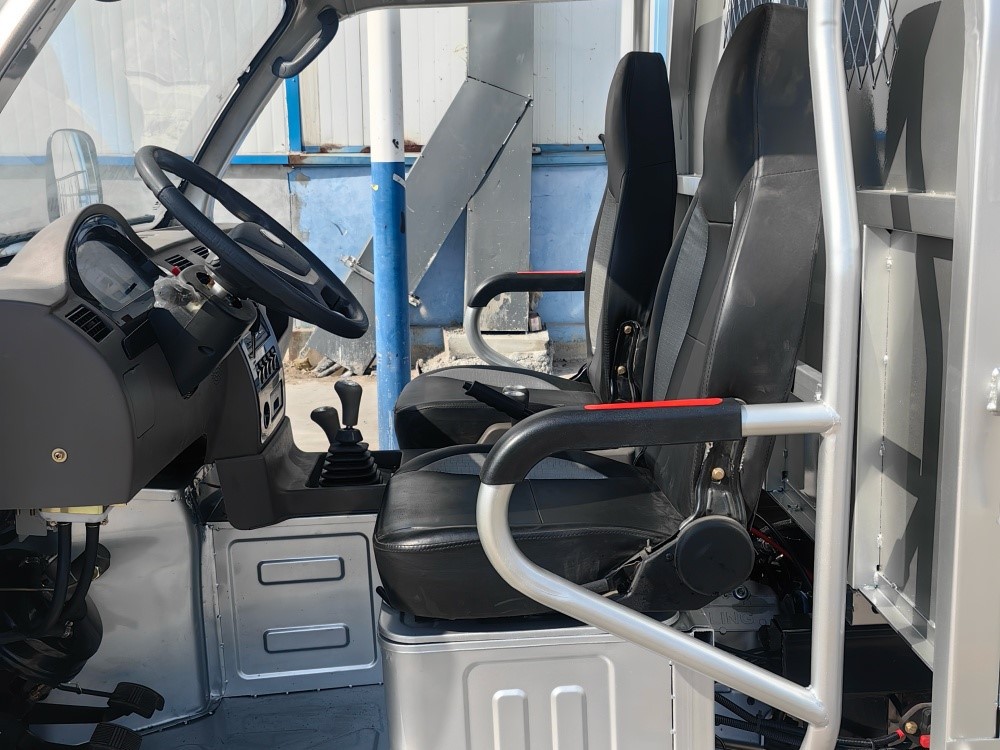

✅ Heavy-Duty Load Capacity: Up to 3000kg payload for the dual rear wheel version, handling bulk agricultural produce, construction materials, and general cargo with ease✅ Reliable Powertrain: 999cc 4-stroke water-cooled gasoline engine with 50.8kW rated power, delivering consistent performance even under full load and high-temperature conditions✅ Enhanced Safety: Hydraulic brakes with vacuum assist, 3-point safety belt, high-strength steel chassis, and dual air cleaners for stable operation in dusty rural environments✅ Adaptable Configurations: 3 base models available, with options for dual rear wheels, hydraulic dump hopper, and custom cargo solutions✅ Low Operating Cost: Fuel-efficient engine design, easy maintenance, and globally available spare parts✅ Comfortable Operation: Offset steering wheel, premium leather seat, electric cabin fan, high-power audio speaker, and ergonomic layout for long-distance driving
3. Full Technical Specifications
表格
| Category | Parameter | Standard Version | Dual Rear Wheel Version | Dump Hopper Version |
|---|---|---|---|---|
| Dimensions & Weight | Overall Length | 4825mm | 4825mm | 4650mm |
| Overall Width | 1690mm | 1690mm | 1690mm | |
| Overall Height | 1970mm | 1970mm | 1970mm | |
| Cargo Hopper Length | 3000mm | 3000mm | 2800mm | |
| Wheelbase | 3130mm | 3130mm | 3130mm | |
| Rear Track | 1230mm | 1230mm | 1230mm | |
| Minimum Turning Radius | 5.2m | 5.2m | 5.2m | |
| Curb Weight | 1200kg | 1200kg | 1225kg | |
| Gross Vehicle Weight | 4200kg | 4200kg | 4225kg | |
| Engine & Powertrain | Engine Type | In-line horizontal, 4-stroke water-cooled gasoline engine | ||
| Engine Model | LJ466MY-D (without electric drive) | |||
| Fuel Supply Method | MPI (Sequential Ignition) carburetor | |||
| Piston Displacement | 999ml | |||
| Bore x Stroke | 66mm × 73mm | |||
| Compression Ratio | 9.9:1 | |||
| Rated Power | 50.8kW @ 5500r/min | |||
| Maximum Torque | 91Nm @ 4000-4500r/min | |||
| Minimum No-Load Stable Speed | 900±50r/min | |||
| Full Load Minimum Fuel Consumption Rate | 265g/(kW·h) | |||
| Maximum Speed | 100km/h | |||
| Transmission & Chassis | Gearbox | 4-speed all-synchromesh manual transmission with High/Low speed gearbox | ||
| Gear Ratios | 1st Gear: 5.953 (low speed)/3.346 (high speed)2nd Gear: 3.726 (low speed)/2.094 (high speed)3rd Gear: 2.425 (low speed)/1.363 (high speed)4th Gear: 1.779 (low speed)/1 (high speed)Reverse Gear: 6.449 (low speed)/3.625 (high speed) | |||
| Main Reduction Gear Ratio | 5.833 | |||
| Steering | Worm Gear Set with offset steering wheel | |||
| Front Suspension | Twin-tube hydraulic telescopic front fork | |||
| Rear Suspension | Heavy-duty leaf spring suspension | |||
| Brakes | Hydraulic brakes with vacuum assist system; Rear drum leading and trailing brakes | |||
| Tires | 6.00-13 steel wire tubeless tires with steel rims | |||
| Seats | 2-person capacity with premium leather driver's seat | |||
| Fuel Tank Capacity | 36L |
4. Standard Configuration
All Jinma T1000 models come with the following standard equipment:
LJ466MY-D 999cc gasoline engine (without electric drive)
6.00-13 tubeless tires with steel rims
High/Low speed 4-speed all-synchromesh gearbox
Hydraulic brakes with vacuum assist system
High-strength steel cargo hopper
Premium leather driver's seat
Dual air cleaner system for dusty environment adaptation
Interior rearview mirror
On-board toolbox with basic maintenance tools
Offset steering wheel for ergonomic operation
3-point safety belt for driver
High-power audio speaker system
Cabin electric fan for ventilation
High-strength steel chassis and frame
5. Order & Shipping Information
Payment Terms
Sample Orders: 100% T/T in advance
Bulk Orders: 50% deposit by T/T upon order confirmation; Balance payment within 15 working days after receiving and confirming the pre-shipment inspection video provided by the seller
Packaging
SKD (Semi-Knocked Down) packaging: 6 units fit into a 40ft standard container
Lead Time
Within 30 working days after deposit receipt and final order confirmation (counted from the day the seller confirms deposit receipt)
Price Validity
Quoted prices are valid for 1 month from the quotation date
FOB prices are subject to fluctuation based on the USD-RMB exchange rate, with the reference rate of 1 USD = 6.8 RMB
6. About Us
Manufacturer: Shandong Runhorse Electric Vehicles Co., Ltd.
Address: No.3081, Shibali Street, Qingzhou Economic Development Zone, Shandong Province, China
Official Website: www.runhorseev.com
Contact Information:
Wechat/WhatsApp: +86 15095248565
Email: alice@runhorseev.com
With years of experience in manufacturing 3-wheel utility vehicles for global agricultural and commercial markets, we are committed to delivering high-quality, reliable, and cost-effective transportation solutions to our customers worldwide. We support custom configuration, OEM/ODM services, and full after-sales support for all our products.
